Workflow Orchestration using LangChain

In the previous lab, the mongodb package was used to perform a vector search through a db command to find product documents that were most similar to the user's input. In this lab, you will use the LangChain package to perform the same search. LangChain has a vector store class named AzureCosmosDBVectorStore, a community contribution, that supports vector search in Azure Cosmos DB.

The AzureCosmosDBVectorStore class represents a single vector index in the database, therefore, the instructions for this lab will focus on the products collection, however the same steps can be used with the customers and sales collections as well.

Throughout this lab, notice how much more concise the code is compared to the previous lab with the addition of LangChain.

Setup the lab environment

Navigate to the lab folder ~/labs/20-Chatbot within the repository.
```
cd  labs/20-Chatbot
```
info
The ~/labs/20-Chatbot/completed folder contains the completed solution for this lab. You can compare your code with the files in completed folder if your code does not run correctly.
Check that the .env file has correct configurations. All placeholder strings should have been replaced in the earlier Lab Setup step.

info
The Azure OpenAI service name is not the full endpoint. Only the service name is required. For example, if the endpoint is https://myservicename.openai.azure.com/, then the service name is myservicename.
Install the LangChain packages by running the following command in the terminal window.
```
npm install langchain@0.1.21 --save
npm install @langchain/community@0.0.32 --save
```
This will install the package and save it as a dependency in your project's package.json file.
Install the required packages by running the following command in the terminal window:
```
npm install
```

Vector search with LangChain

The first step is to initialize the connection to the vector store. The AzureCosmosDBVectorStore class is used to represent the vector store. This section will walk through the initialization of this connection as well as a test call that issues a vector search and outputs the results.

When establishing the connection to the vector store, recall that in the previous lab, each collection was populated and a contentVector field added that contains the vectorized embeddings of the document itself. Finally, a vector index was also created on the contentVector field to enable vector search. The vector index in each collection is named VectorSearchIndex.

The return value of a vector search in LangChain is a list of Document objects. The LangChain Document class contains two properties: pageContent, that represents the textual content that is typically used to augment the prompt, and metadata that contains all other attributes of the document. In the cell below, we'll use the _id field as the pageContent, and the rest of the fields are returned as metadata.

Open the 3a-vector-search.js file in the Visual Studio Code editor. Notice that it has the basic MongoDB connection setup.

Add the following complete code block where the set up the Azure Cosmos DB vector store using the initialized MongoDB client comment appears:

const azureCosmosDBConfig = {
  client: dbClient,
  databaseName: dbname,
  collectionName: "products",
  indexName: "VectorSearchIndex",
  embeddingKey: "contentVector",
  textKey: "_id",
};
const vectorStore = new AzureCosmosDBVectorStore(
  new OpenAIEmbeddings(),
  azureCosmosDBConfig
);

In the main function, paste this block where the perform a vector search using the vector store comment appears:

const results = await vectorStore.similaritySearch(
  "What yellow products do you have?",
  AzureCosmosDBSimilarityType.CosineSimilarity,
  3
);
console.log(results);

Save the 3a-vector-search.js file.
Run the application by executing the following command in the terminal window:
```
node 3a-vector-search.js
```

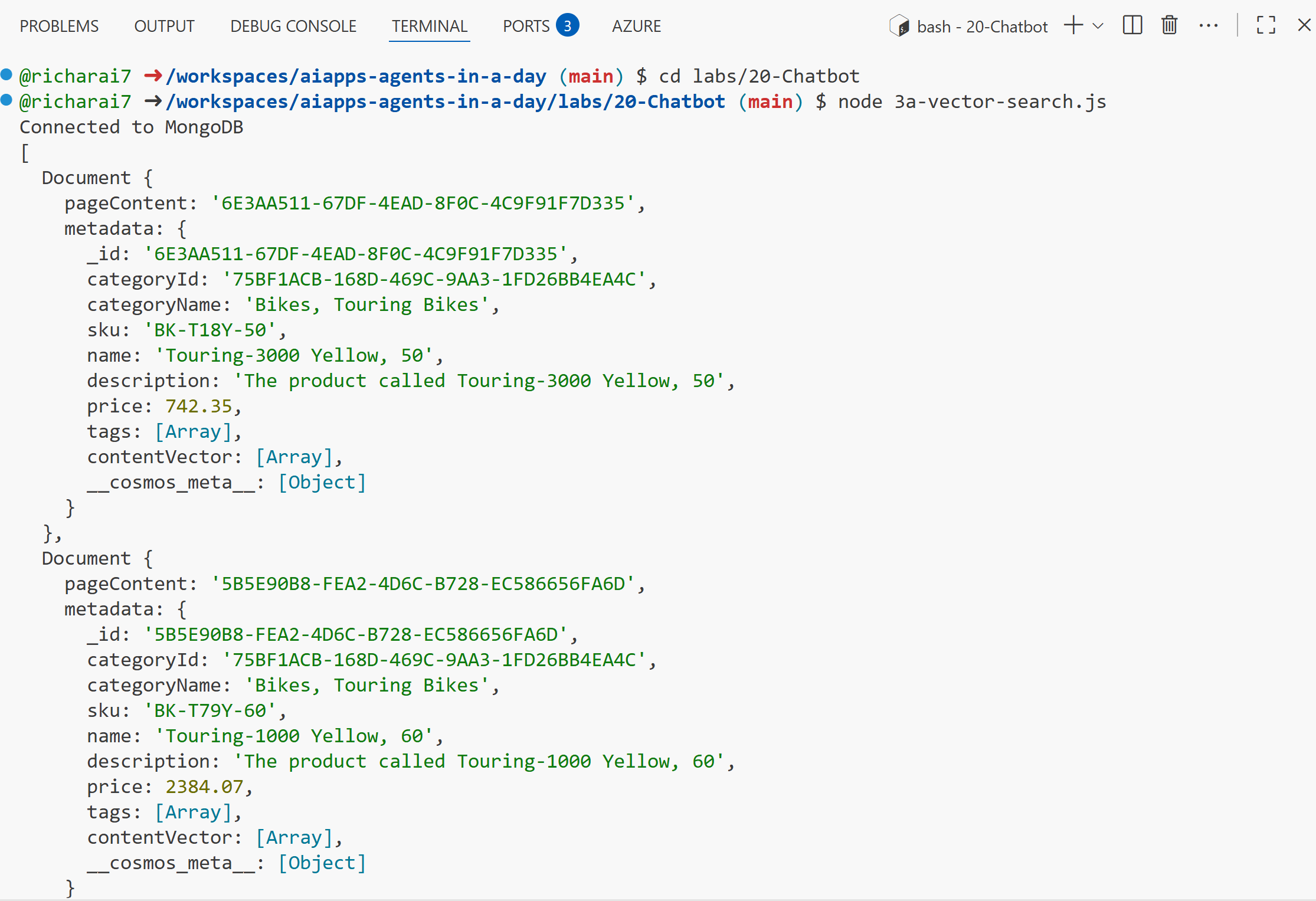

The output will be a list of Document objects that contain the metadata of the documents that are most similar to the user's input.

info
The Document objects contain the page_content and metadata properties. The page_content is the _id field of the document, and the metadata contains all other fields of the document.

info
Please compare vectorStore.similaritySearch with previous section's ragWithVectorsearch, can you tell the differences between them?

RAG with LangChain

In this section, we'll implement the RAG pattern using LangChain. In LangChain, a retriever is used to augment the prompt with contextual data. In this case, the already established vector store will be used as the retriever. By default, the prompt is augmented with the pageContent field of the retrieved document that customarily contains the text content of the embedded vector. In our case, the document itself serves as the textual content, so we'll have to do some pre-processing to format the text of the product list that is expected in our system prompt (JSON string) - see the formatDocuments function below for this implementation.

We'll also define a reusable RAG chain to control the flow and behavior of the call into the LLM. This chain is defined using the LCEL syntax (LangChain Expression Language).

Open the 3b-langchain-rag.js file in the Visual Studio Code editor.

RAG with LangChain

We'll also define a reusable RAG chain to control the flow and behavior of the call into the LLM. This chain is defined using the LCEL syntax (LangChain Expression Language).

Open the 3b-langchain-rag.js file. Notice it has the basic MongoDB connection setup.
Add the following complete code block in the main function, beneath the console.log("Connected to MongoDB"); line of code,
```
// Test the RAG chain
console.log(await ragLCELChain("What yellow products do you have?"));
```

Add the following helper functions before the main function call main().catch(console.error); at the end of the file:

function formatDocuments(docs) {
  // Prepares the product list for the system prompt.
  let strDocs = "";
  for (let index = 0; index < docs.length; index++) {
    let doc = docs[index];
    let docFormatted = { _id: doc.pageContent };
    Object.assign(docFormatted, doc.metadata);

    // Build the product document without the contentVector and tags
    if ("contentVector" in docFormatted) {
      delete docFormatted["contentVector"];
    }
    if ("tags" in docFormatted) {
      delete docFormatted["tags"];
    }

    // Add the formatted product document to the list
    strDocs += JSON.stringify(docFormatted, null, "\t");

    // Add a comma and newline after each item except the last
    if (index < docs.length - 1) {
      strDocs += ",\n";
    }
  }
  // Add two newlines after the last item
  strDocs += "\n\n";
  return strDocs;
}

async function ragLCELChain(question) {
  // A system prompt describes the responsibilities, instructions, and persona of the AI.
  // Note the addition of the templated variable/placeholder for the list of products and the incoming question.
  const systemPrompt = `
        You are a helpful, fun and friendly sales assistant for Contoso Bike Store, a bicycle and bicycle accessories store.
        Your name is Cosmo.
        You are designed to answer questions about the products that Contoso Bike Store sells.

        Only answer questions related to the information provided in the list of products below that are represented
        in JSON format.

        If you are asked a question that is not in the list, respond with "I don't know."

        Only answer questions related to Contoso Bike Store products, customers, and sales orders.

        If a question is not related to Contoso Bike Store products, customers, or sales orders,
        respond with "I only answer questions about Contoso Bike Store"

        List of products:
        {products}

        Question:
        {question}
    `;

  // Use a retriever on the Cosmos DB vector store
  const retriever = vectorStore.asRetriever();

  // Initialize the prompt
  const prompt = PromptTemplate.fromTemplate(systemPrompt);

  // The RAG chain will populate the variable placeholders of the system prompt
  // with the formatted list of products based on the documents retrieved from the vector store.
  // The RAG chain will then invoke the LLM with the populated prompt and the question.
  // The response from the LLM is then parsed as a string and returned.
  const ragChain = RunnableSequence.from([
    {
      products: retriever.pipe(formatDocuments),
      question: new RunnablePassthrough(),
    },
    prompt,
    chatModel,
    new StringOutputParser(),
  ]);

  return await ragChain.invoke(question);
}

Save the 3b-langchain-rag.js file.

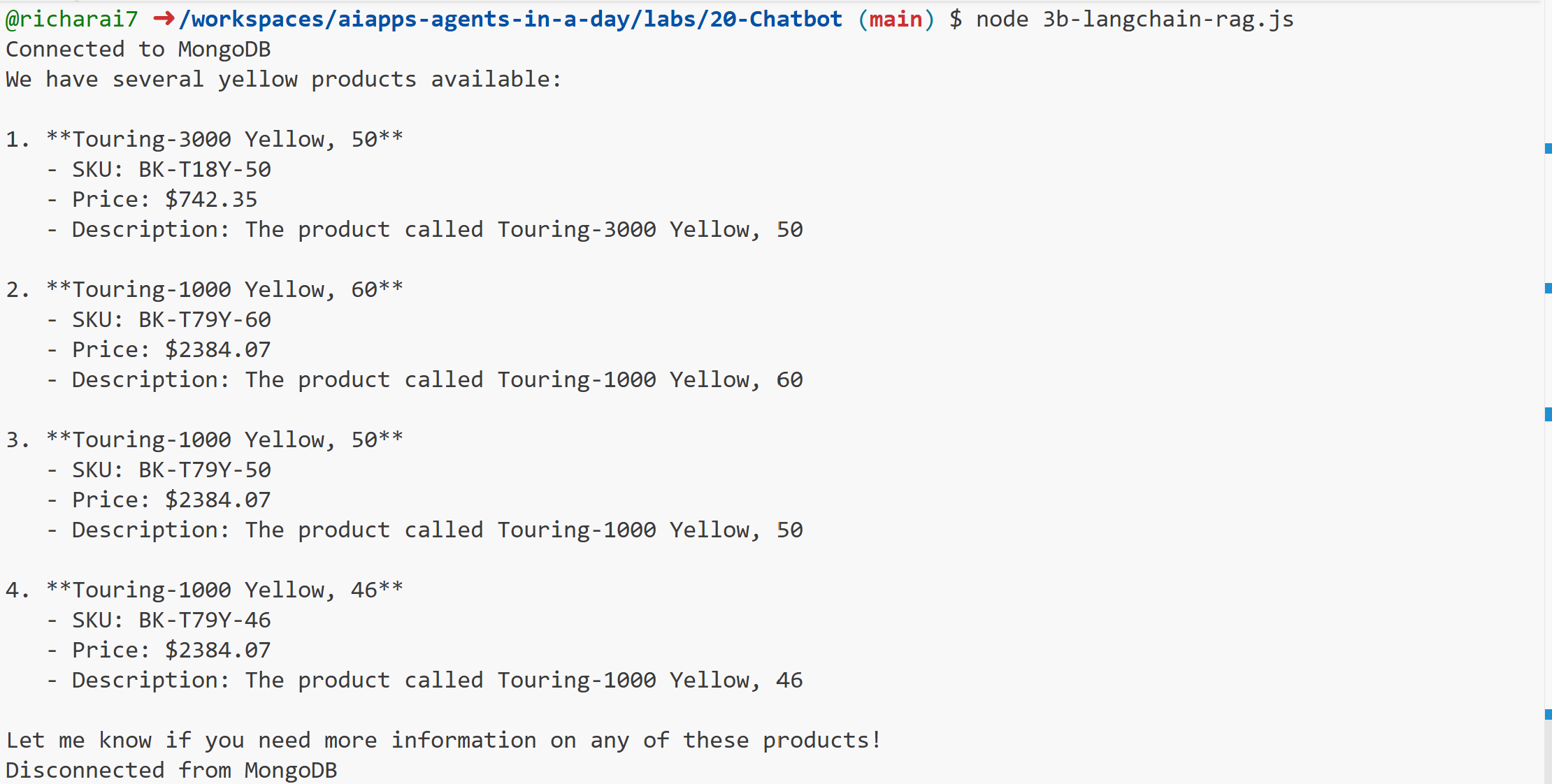

Run the application by executing the following command in the terminal window:
```
node 3b-langchain-rag.js
```
You can also try a different question by modifying the test call:
```
console.log(
  await ragLCELChain(
    "What is the name of the product that has the SKU TI-R982?"
  )
);
```
info
Why do we get a response like this? how can we improve it?

LangChain agent

In this section, we'll implement a LangChain agent that will be used to interact with the LLM. The agent will be used to control the flow and behavior of the call into the LLM. An agent differs from the previous RAG chain in that the RAG chain is a definition of a sequence of specific actions. Agents on the other hand are equipped with various tools and will determine which actions to take based on the context of the conversation.

In this scenario, an agent will be equipped with two tools, one that uses a retriever chain from the vector store, and another that will perform a MongoDB lookup based on a SKU value. The reason the SKU lookup tool is introduced is because the vector store is built for semantic search. Some fields, such as the _id or sku fields do not have semantic meaning and therefore a direct lookup is more appropriate.

Open the 3c-langchain-agent.js file in the Visual Studio Code editor.

Immediately after the const { StringOutputParser } = require("@langchain/core/output_parsers"); line of code, add the following dependencies to support the creation of the LangChain agent:

// For LangChain agent
const { DynamicTool } = require("@langchain/core/tools");
const { AgentExecutor } = require("langchain/agents");
const {
  MessagesPlaceholder,
  ChatPromptTemplate,
} = require("@langchain/core/prompts");
const {
  convertToOpenAIFunction,
} = require("@langchain/core/utils/function_calling");
const {
  OpenAIFunctionsAgentOutputParser,
} = require("langchain/agents/openai/output_parser");
const {
  formatToOpenAIFunctionMessages,
} = require("langchain/agents/format_scratchpad");

Immediately before the last line of code in the file (that calls the main function), add the following function that builds a LangChain agent executor and a helper function that will invoke the agent. The code is documented inline.

async function buildAgentExecutor() {
  // A system prompt describes the responsibilities, instructions, and persona of the AI.
  // Note the variable placeholders for the list of products and the incoming question are not included.
  // An agent system prompt contains only the persona and instructions for the AI.
  const systemMessage = `
            You are a helpful, fun and friendly sales assistant for Contoso Bike Store, a bicycle and bicycle accessories store.

            Your name is Cosmo.

            You are designed to answer questions about the products that Contoso Bike Store sells, the customers that buy them, and the sales orders that are placed by customers.

            If you don't know the answer to a question, respond with "I don't know."

            Only answer questions related to Contoso Bike Store products, customers, and sales orders.

            If a question is not related to Contoso Bike Store products, customers, or sales orders,
            respond with "I only answer questions about Contoso Bike Store"
        `;

  // Create vector store retriever chain to retrieve documents and formats them as a string for the prompt.
  const retrieverChain = vectorStore.asRetriever().pipe(formatDocuments);

  // Define tools for the agent can use, the description is important this is what the AI will
  // use to decide which tool to use.

  // A tool that retrieves product information from Contoso Bike Store based on the user's question.
  const productsRetrieverTool = new DynamicTool({
    name: "products_retriever_tool",
    description: `Searches Contoso Bike Store product information for similar products based on the question.
                    Returns the product information in JSON format.`,
    func: async (input) => await retrieverChain.invoke(input),
  });

  // A tool that will lookup a product by its SKU. Note that this is not a vector store lookup.
  const productLookupTool = new DynamicTool({
    name: "product_sku_lookup_tool",
    description: `Searches Contoso Bike Store product information for a single product by its SKU.
                    Returns the product information in JSON format.
                    If the product is not found, returns null.`,
    func: async (input) => {
      const db = dbClient.db(dbname);
      const products = db.collection("products");
      const doc = await products.findOne({ sku: input });
      if (doc) {
        //remove the contentVector property to save on tokens
        delete doc.contentVector;
      }
      return doc ? JSON.stringify(doc, null, "\t") : null;
    },
  });

 const productFeedbackTool = new DynamicTool({
     name: "product_feedback_lookup_tool",
     description: `Searches Contoso Bike Store feedback based on the question.
                 Returns the product name, sku and feedback in text format.
                 If the product is not found, returns null.`,
     func: async (input) => {
         const url = `${graphRagAPI}/query/global`;
         const requestBody = {
             index_name: "bike",
             query: `whats the top 2 products based on:  ${input}?`,
             community_level: 1
         };

         const response = await axios.post(url, requestBody, {});
         return response.data.result;
     },
 });

  // Generate OpenAI function metadata to provide to the LLM
  // The LLM will use this metadata to decide which tool to use based on the description.
  const tools = [productsRetrieverTool, productLookupTool, productFeedbackTool];
  const modelWithFunctions = chatModel.bind({
    functions: tools.map((tool) => convertToOpenAIFunction(tool)),
  });

  // OpenAI function calling is fine-tuned for tool using therefore you don't need to provide instruction.
  // All that is required is that there be two variables: `input` and `agent_scratchpad`.
  // Input represents the user prompt and agent_scratchpad acts as a log of tool invocations and outputs.
  const prompt = ChatPromptTemplate.fromMessages([
    ["system", systemMessage],
    ["human", "{input}"],
    new MessagesPlaceholder((variable_name = "agent_scratchpad")),
  ]);

  // Define the agent and executor
  // An agent is a type of chain that reasons over the input prompt and has the ability
  // to decide which function(s) (tools) to use and parses the output of the functions.
  const runnableAgent = RunnableSequence.from([
    {
      input: (i) => i.input,
      agent_scratchpad: (i) => formatToOpenAIFunctionMessages(i.steps),
    },
    prompt,
    modelWithFunctions,
    new OpenAIFunctionsAgentOutputParser(),
  ]);

  // An agent executor can be thought of as a runtime, it orchestrates the actions of the agent
  // until completed. This can be the result of a single or multiple actions (one can feed into the next).
  // Note: If you wish to see verbose output of the tool usage of the agent,
  //       set returnIntermediateSteps to true
  const executor = AgentExecutor.fromAgentAndTools({
    agent: runnableAgent,
    tools,
    //returnIntermediateSteps: true
  });

  return executor;
}

// Helper function that executes the agent with user input and returns the string output
async function executeAgent(agentExecutor, input) {
  // Invoke the agent with the user input
  const result = await agentExecutor.invoke({ input });

  // Output the intermediate steps of the agent if returnIntermediateSteps is set to true
  if (agentExecutor.returnIntermediateSteps) {
    console.log(JSON.stringify(result.intermediateSteps, null, 2));
  }
  // Return the final response from the agent
  return result.output;
}

In the main function, directly beneath the line of code console.log('Connected to MongoDB');, add the following code that will call the buildAgentExecutor function to create the LangChain agent executor and the executeAgent function to engage with the agent and outupt the results.
```
const agentExecutor = await buildAgentExecutor();
console.log(
  await executeAgent(agentExecutor, "What yellow products do you have?")
);
```
Save the 3c-langchain-agent.js file.

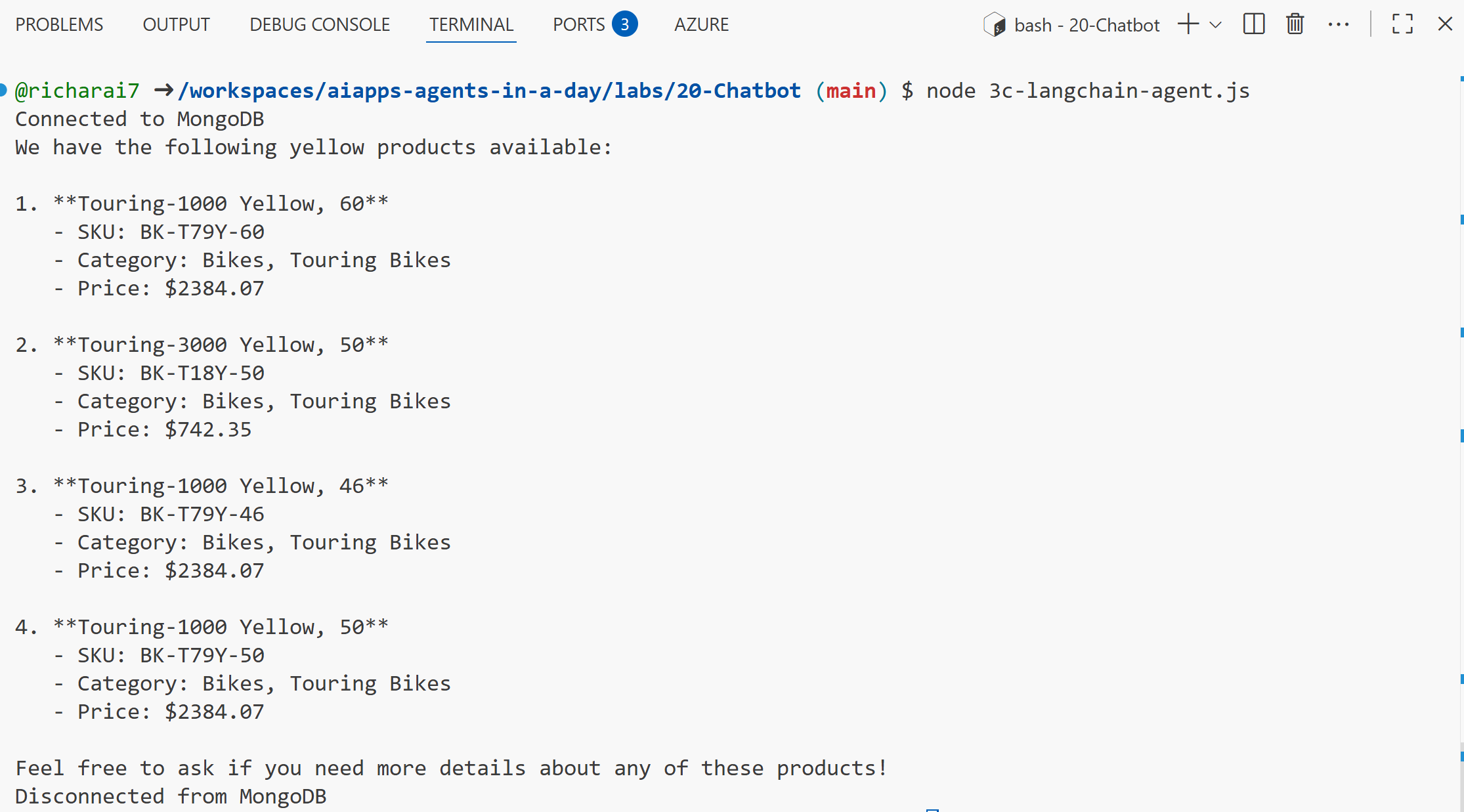

Run the application by executing the following command in the terminal window:
```
node 3c-langchain-agent.js
```
Change the question in the executeAgent function to What is the name of the product that has the SKU TI-R982?.

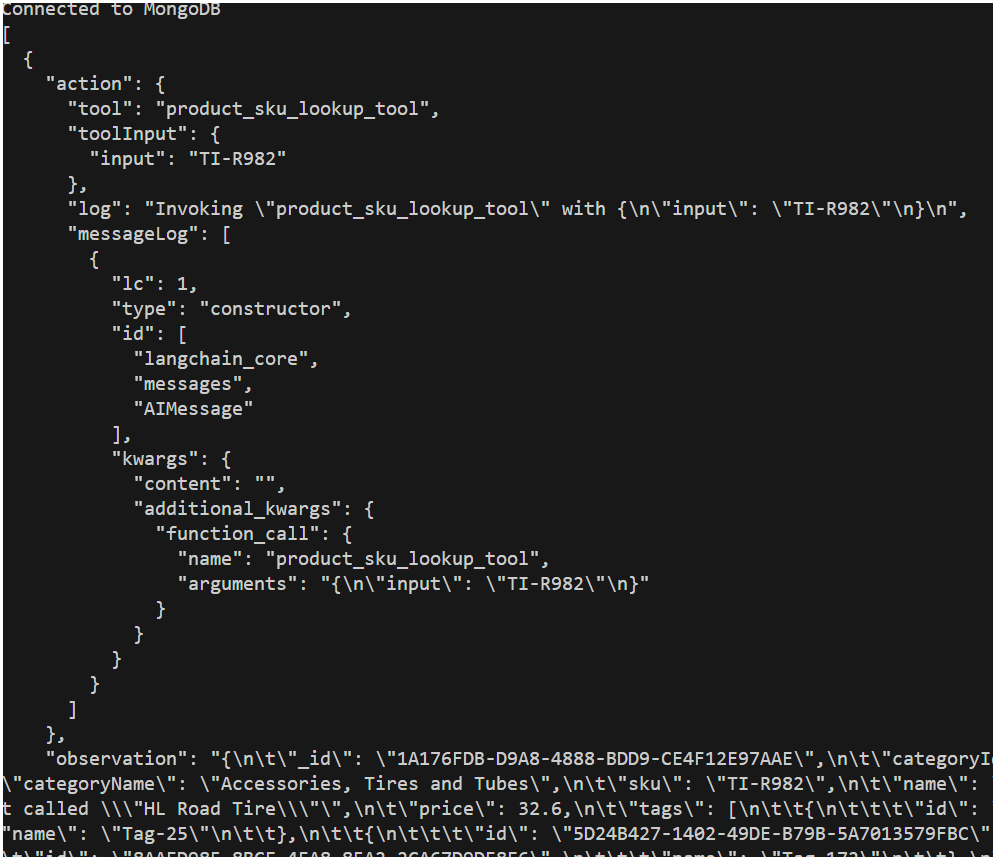

Find the commented line of code //returnIntermediateSteps: true in the executeAgent function and uncomment it to enable verbose output of the tool usage of the agent. This will output the intermediate steps of the agent that includes the function calls and their outputs.
Save the 3c-langchain-agent.js file.
Run the application by executing the following command in the terminal window:
```
node 3c-langchain-agent.js
```
Notice the verbose output includes the selection, input, and observation(output) of the tool used by the agent.
If desired, comment out the line of code //returnIntermediateSteps: true in the executeAgent function to disable verbose output of the tool usage of the agent.

info

Please think about the difference between 3b-langchain-rag.js and 3c-langchain-agent.js. Which one do you think is better?

Experiment with additional questions of your own. For example, change the question in the executeAgent function to What's the top 2 Tire based on feedback?. It will use productFeedbackTool to invoike API call to Graph RAG endpoint.

Summary

In this lab, you used the LangChain package to perform a vector search in Azure Cosmos DB. You initialized the connection to the vector store, performed a vector search, implemented the RAG pattern using LangChain, and created a LangChain agent. You also experimented with the LangChain agent and observed the verbose output of the tool usage of the agent.

Workflow Orchestration using LangChain

Setup the lab environment​

Vector search with LangChain​

RAG with LangChain​

RAG with LangChain​

LangChain agent​

Summary​

Setup the lab environment

Vector search with LangChain

RAG with LangChain

RAG with LangChain

LangChain agent

Summary
